TopWell carwash
Rollover Bus/Truck Wash Machine
- Wash capacity up to 20 buses per hour
- Suitable for traveling bus company and logistic truck fleet
- Support wash dimensions customization
- 2/3 Italy FAVAGROSSA brushes available
Contact us for a price
Speak To A Car Washing Machine Specialist
Specifications
Rollover Bus/Truck Wash Machine Details
GH-500 series rollover bus/truck wash machine, suitable for cleaning dust, oil stains, and other stains on the surface of large vehicles. Automatically clean the front, roof, sides, and rear of the vehicle with the action of water, detergent, and cleaning brush. The bus washing machine is composed of a mobile brushing system, an electric control system, a water supply system, a detergent supply system, etc. When the vehicle stops at the designated position in the cleaning area, the bus washing machine moves on the walking rail, automatically sprays foam, and starts brush washing, and can choose whether to use the top brush to clean the front, rear, or roof during the cleaning process. The touch screen can be used to select whether to use foam as well. For the 2-side brush structure, high-pressure water will be added to the top to wash the truck.
| Model | GH-500 series |
|---|---|
| Equipment size | Standard-2.6 x5.0x4.9 m (LxWxH) |
| Rail length | Standard-18m |
| Wash for | Bus, coach, container truck, garbage truck |
| Max wash size | Standard-12×2.7×3.6m height (LxWxH) |
| Accept customization | Wash capacity: 15-20 vehicles per hour |
| Machine total power | Power supply: 380V, 50HZ, 3P. Accept customization. |
| Brushes | 2 and 3pcs brushes can choose |
| Water consumption | 80L per minute |
| Foam | Equipped |
| Machine material | Galvanization |
| Undercarriage cleaning | Optional |
| HP water cleaning | Optional |
| Dryer arch | Optional |
| Water recycling system | Optional |
Main Features
● Fully automatic cleaning, side brush automatically avoids the side mirror
● 2pcs and 3pcs Italy brushes can be chosen
● Using galvanized frame structure
● Mitsubishi PLC control system with 10′ touch screen
● Can be customized for special trucks
● The dosing pump accurately controls the cost of detergent

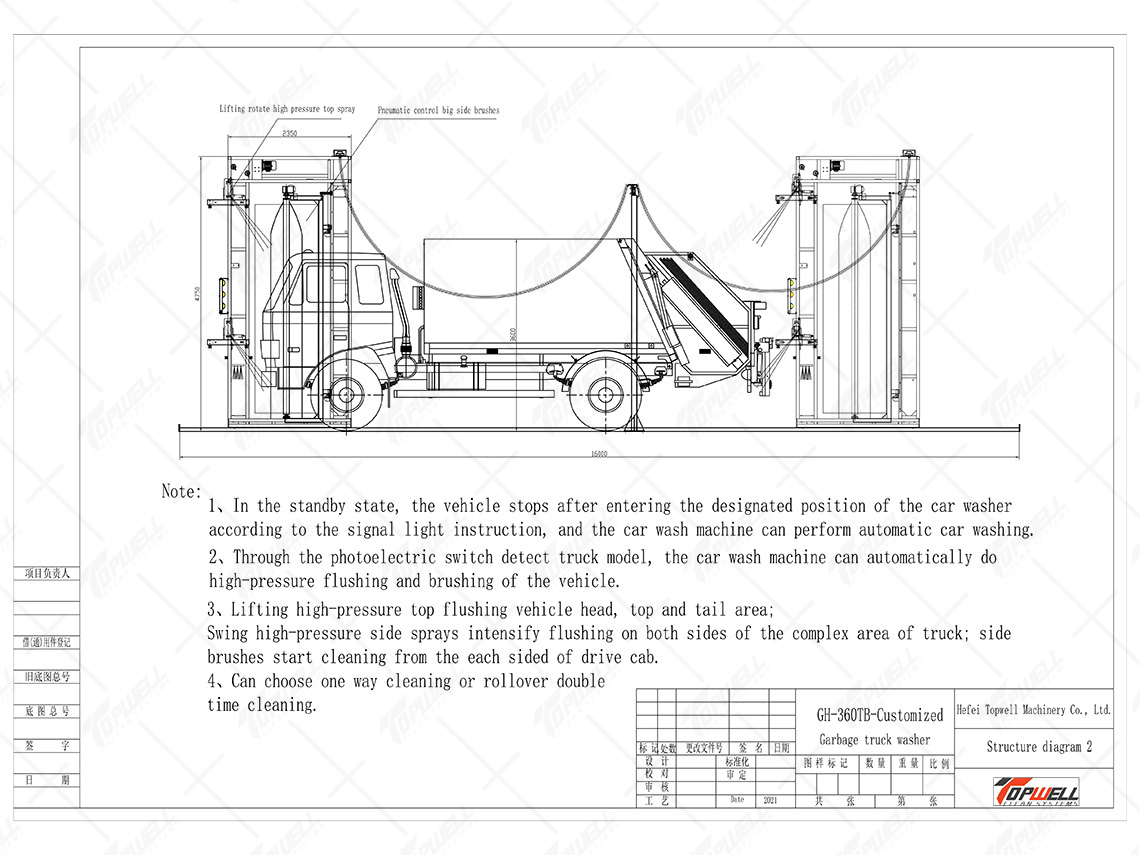

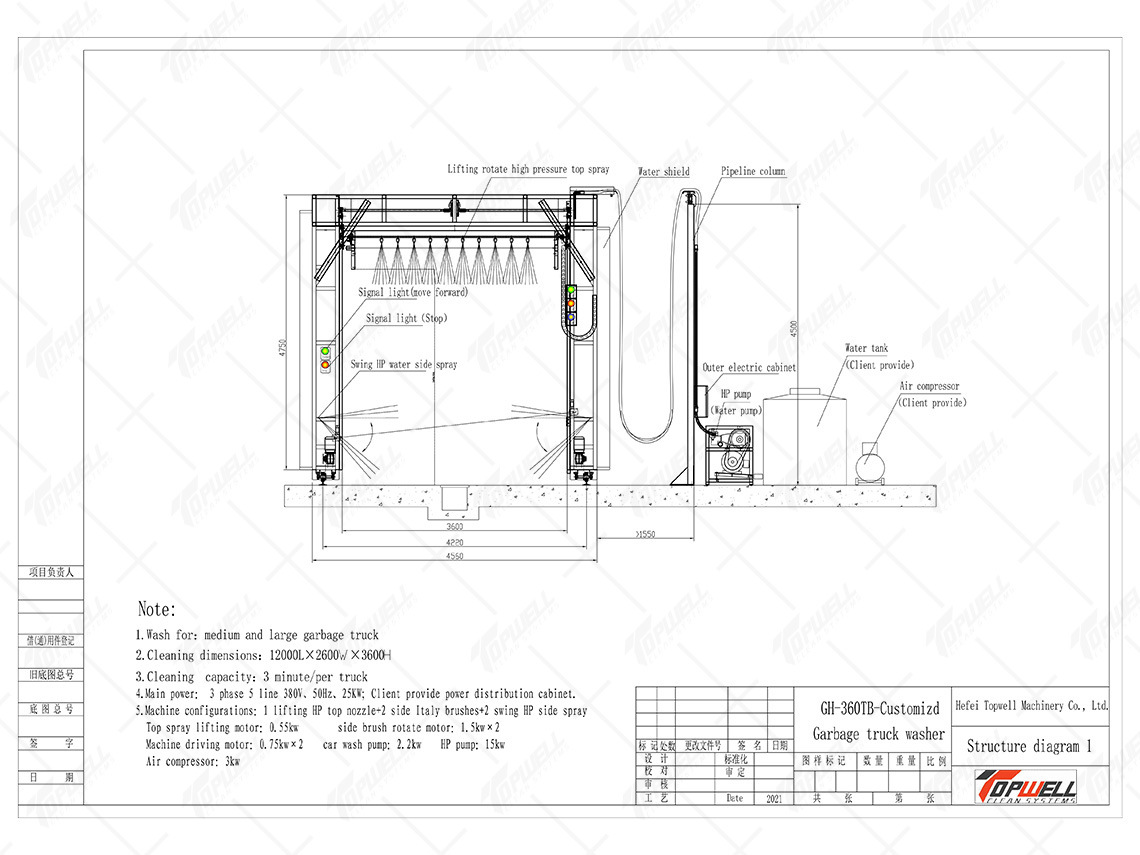

Frame drawing
The details you may care about
Washing video
Rollover garbage truck wash
Trusted Clients
More and more clients choose to trust and cooperate with TOPWELL
Services
Customization Steps
Discuss Your Needs
Tailored Solution
Precision Manufacturing
Installation & Training
Contact us for a price
Speak To A Car Washing Machine Specialist
FAQ Guide
Rollover Bus/Truck Wash Machine
How to solve the after-sales problem after the equipment is installed?
At present, WhatsApp and other foreign social media software cannot be opened in China without a VPN. Therefore, after cooperation, we suggest the customers download the WeChat App. Topwell will set up a separate group for each customer, which includes the salesperson and the technician in the factory. If you have any after-sales problems, you just need to describe the problem clearly and send relevant photos and videos to the group. Our technicians will guide you and provide a solution immediately.
My staff and I do not have any professional knowledge of equipment, how to manage and maintain it?
Except for the professional car washer agents that we cooperate with (acting for our brands and also for European and American car washer brands), it can be said that most of the other customers are the first time to come into contact with a fully auto car washer. Our equipment is actually very simple to maintain, and the operation manual also gives detailed regular maintenance instructions. For example: regularly apply engine oil to the chain, empty the air inside the compressor every day when the business is closed, wipe the surface of the sensor every day, and so on.
If the equipment fails, the touch screen will give an alarm record. The operator only needs to take photos of the faulty part and the alarm record. We may still need the signal light photo of PLC, after that, our technicians will give the troubleshooting method to find the problem and solve it. Every step is operated after our guidance, which is very easy to handle. And the equipment has high stability, so there is no need to worry about the failure rate.
How to get a truck wash solution?
1. Providing vehicle photos
2. Confirming maximum vehicle dimensions
3. How many vehicles need to be cleaned per day?
How long is the lead time?
Standard 380V, 50HZ, 3P required 50 days; Other voltage and frequency plus 10 days.
